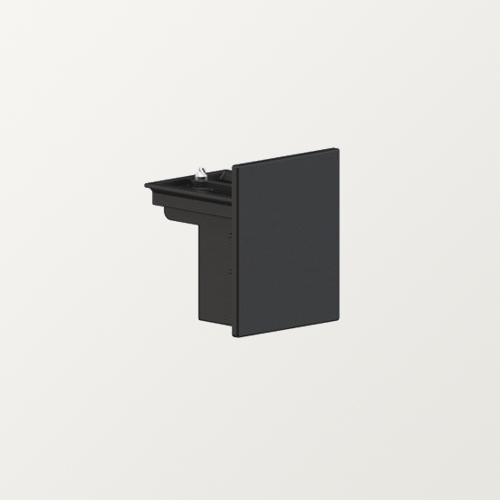

              End Cap With Locking Screw
              End Cap for track with locking screw
              Polycarbonate body.
              Available colours: black RAL9005 (B) and white RAL9010 (W).

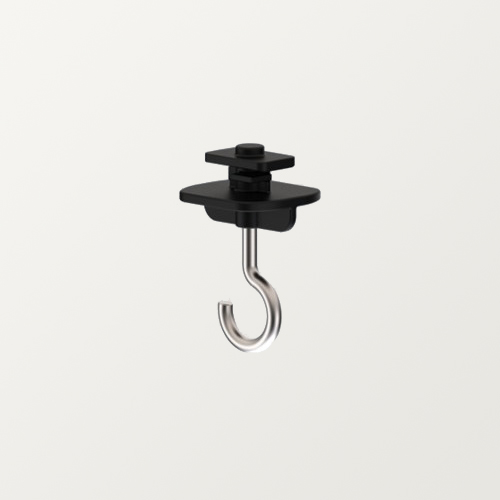

              Suspension Hook
              Clamp with hook for mounting in 220V Track.
              Polycarbonate housing.
              Available colours: black RAL9005 (B) and white RAL9010 (W).
              Galvanized steel hook.
              Max. load: 50N.

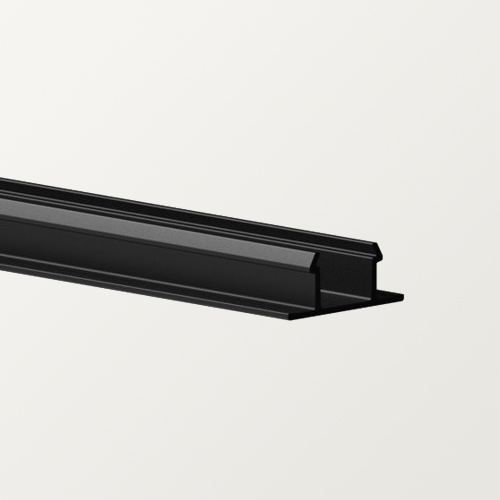

              Cover Strip For Track
              Cover Strip for 220V TRACK
              PVC body.
              Available colours: black RAL9005 (B) and white RAL9010 (W)
              Lenght: 1000 mm
              Cutting Tool For Track Conductor
              Cutting tool for busbar conductor copper tracks.
              For shortening the copper strips on head sides. As a result of a saw cut.
              Necessary for the correct mounting of end pieces, power connections, corners, T-pieces and cross connections.

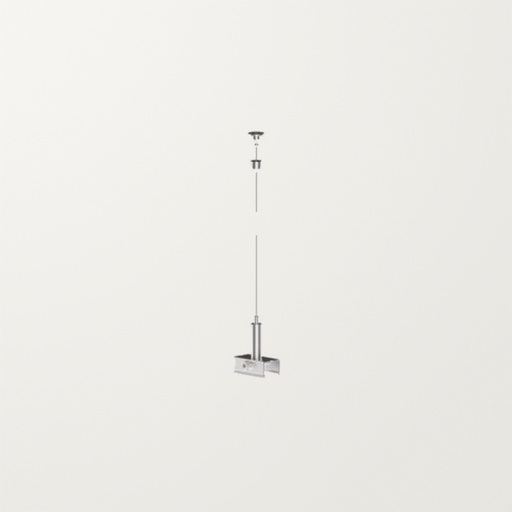

              Pendant Set Ceiling Attachment
              Suspension set steel cable Ø 1.5mm with spherical end for ceiling mounting.
              Available in length 1.5m or 3m.
              Clamp with automatic gripper for easy height adjustment included.

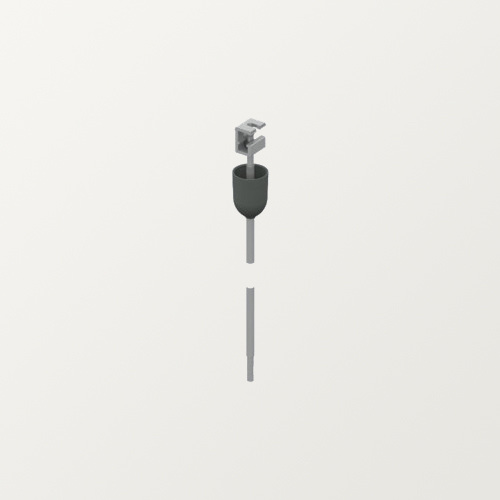

              Ceiling Bracket -1m Threaded
              Steel wire ceiling mounting clamp with cap.
              Cover made of PVC.
              M6 threaded rod (L=1m).
              Mechanical Clutch for Track
              Mechanical coupler for connecting tracks. Can guarantee the stability of the electrical connection.
              Recommended for a rectilinear result in pendulum applications.
              Lenght: 100mm.
              Aluminium.
              Available colours: black RAL9005 (B) and white RAL9010 (W).
              Automatic Gripper With Lock
              Gibe with steel wire lock. For pendulum steel wire with max. diameter 1mm.
              For hanging pendulum products on steel wire via the mechanical lock.
              Nickel-plated brass.

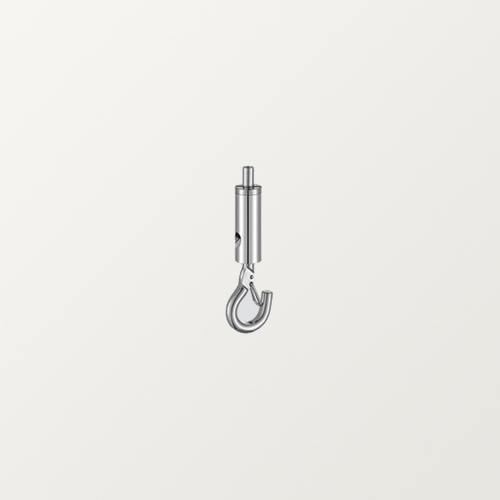

              Automatic Lock Gripper - Cable Extension
              Automatic locking gripper for steel wire/pendulum set extension 1.5mm.
              In nichel plated brass.

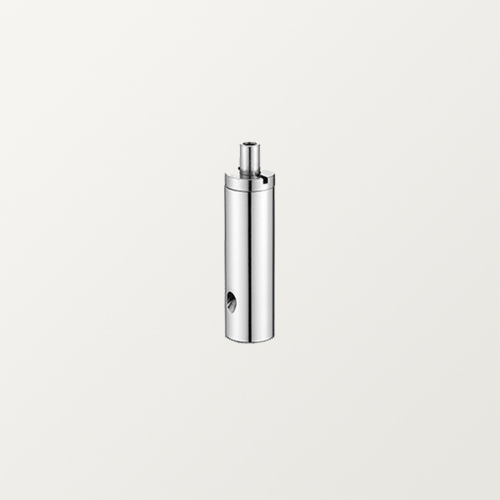

              Automatic M5 Threaded Gripper With Side Hole
              Gripper for steel wire suspension set measures M5 female thread.
              In chromed brass.
              Asymmetric 6 Conductor Adapter
              Polycarbonate body. Available colours: black RAL9005 (B) and white RAL9010 (W)
              Copper alloy contacts.
              Max. load: 100N
              Compatible with ONETRACK UL 3 circuits common neutral 220V.
              External Cable Lock With Plastic Screw
              Cable lock with strain relief must be used with Asymmetrical 6-wire adapter.
              Only to use as an electrical interface. For transferring track guides to cable guides. For example, with pendant luminaire mounting on a track system.
              Polyamide housing and grub screw.
              Available colours: black RAL9005 (B) and white RAL9010 (W).
              For cables with a diameter of 6-9 mm.

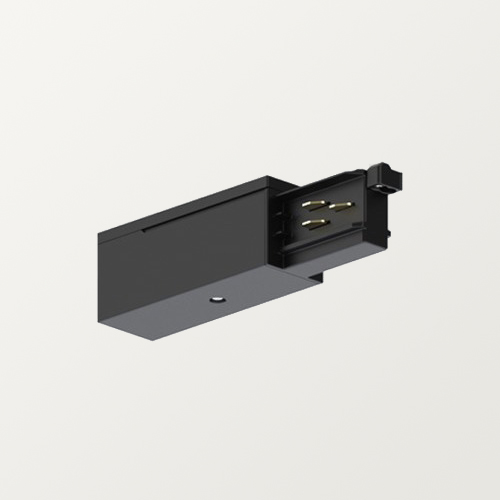

              Power Feed
              Power supply terminal block. Select left or right connection.
              Polycarbonate body.
              Available colours: black RAL9005 (B) and white RAL9010 (W)
              Copper alloy contacts
              Rated current and voltage: 16A-440V 1A-50Vac FELV
              Phase/phases power: 3,6kVA/10,8kVA
              Joining Connector
              Electrical connection for TRACK 220V.
              With locking screws.
              Suspended version recommended for use with mechanical coupling.
              Polycarbonate housing.
              Available colours: black RAL9005 (B) and white RAL9010 (W).
              Copper alloy contacts.
              Rated Current and Voltage: 16A-440V 1A-50Vac FELV
              Phase/phase power: 3.6kVA/10.8kVA

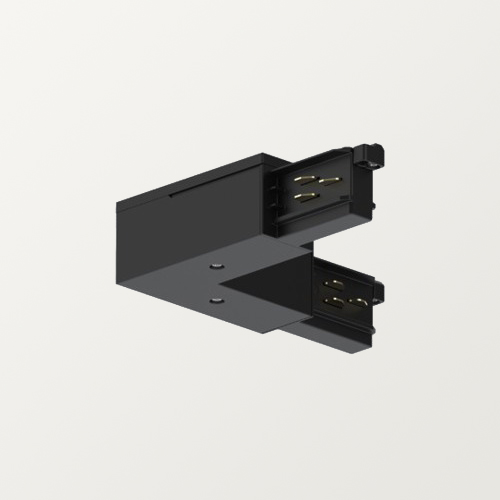

              L-Feed
              Polycarbonate body. Available colours: black RAL9005 (B) and white RAL9010 (W).
              Copper alloy contacts.
              Rated current and voltage: 16A-440V 1A-50Vac FELV.
              Phase/phases power: 3,6kVA/10,8kVA.
              This item is pre-wired.

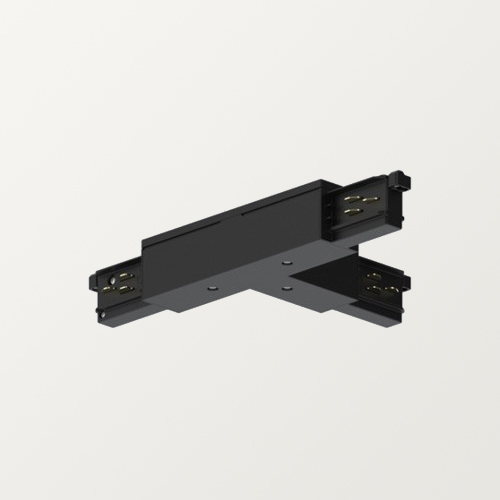

              T-Feed
              Polycarbonate body.
              Available colours: black RAL9005 (B) and white RAL9010 (W).
              Copper alloy contacts.
              Rated current and voltage: 16A-440V 1A-50Vac FELV.
              Phase/phases power: 3,6kVA/10,8kVA.
              This item is pre-wired.

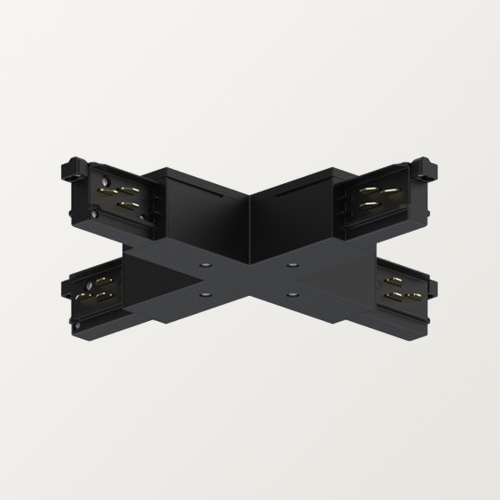

              X-Feed
              X connector for 220V Tracks.
              Polycarbonate housing.
              Available colours: black RAL9005 (B) and white RAL9010 (W).
              Copper alloy contacts.
              Rated current and voltage: 16A-440V 1A-50Vac FELV.
              Phase/phase power: 3.6kVA/10.8kVA.
              This item is prewired.

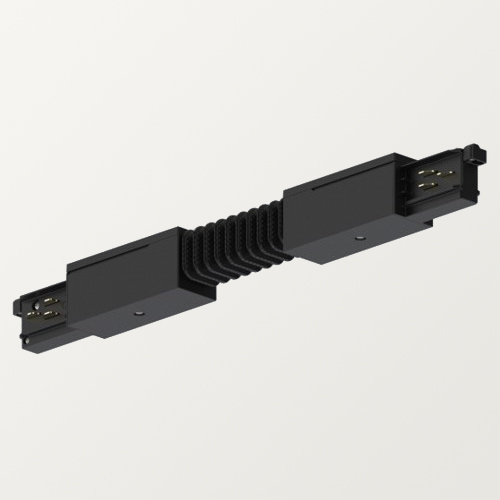

              Flexible Track Connector
              Polycarbonate body.
              Available colours: black RAL9005 (B) and white RAL9010 (W)
              Copper alloy contacts.
              Rated current and voltage: 16A-440V 1A-50Vac FELV
              This item is pre-wired.

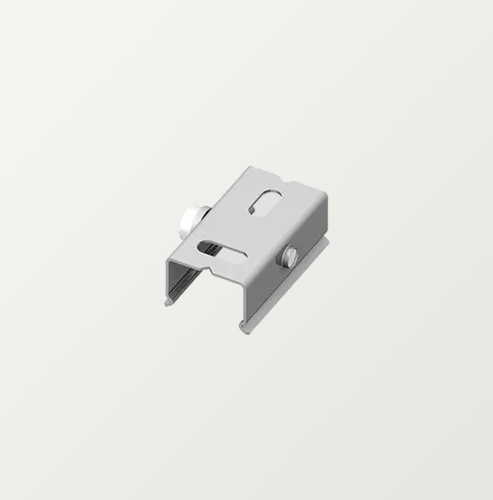

              Ceiling Clamp for Surface Mounting Track
              Ceiling clamp for surface mouning of standard track 220V.
              Creates a gap between the profile and the ceiling.
              Metal.
              With turnbuckle for securing track.

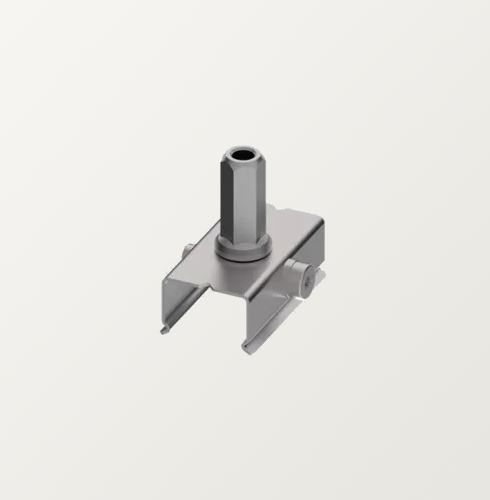

              Track Clamp for M6 Bracket
              Clamp for use with ceiling bracked treaded bar M6.
