              28 items found.
              1. Shop
              2. Controllers - 28 items
              Pricelist :
              Public Pricelist
              Sort By :
              What's New
              DMX RGB 6A Controller
              Multi­functional LED dimmer to set the intensity and the color effect for RGB LEDs.
              DMX RGB LED controller for maximum 10m RGB strip. Extendable untill 256 units (10m RGB LED strip) by DMX protocol.
              Output capacity 6A per channel.
              Dimensions: 67 x 40 x 15 mm
              DMX to Phase-Cut 220V DIM
              Triac and Mosfet dimmer to control with DMX signal.
              Forward-phase control dimmer(TRIAC) & Reverse-phase control dimmer both available.
              Compatible with a variety of DMX512 controle systemen.
              To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.

              Input Voltage 100-240VAC
              Output Current 5A
              Output Power 500W
              Dimension 170x59x29mm
              Waterproof grade IP20
              DALI relay 8A
              DALI RM8/RM16 provides a via DALI bus controllable relay switch, which allows direct switching of permanent loads up to 2kW.

              The purposeful switching in voltage zero crossings, enables an increase of the device lifetime.
              DALI to Phase-Cut 220V DIM 10-300W
              DALI trailing edge phase dimmer 10-300W 86458619-300U.
              Dimming possible of several dimmable phase dim LED retrofit lamps. No halogen lamps!
              Minimum load 10W.
              Maximum load 300W.
              Suitable for resistive, inductive and capacitive loads. By self-detection device after connecting load.
              DALI control signal consumption in standby 6mA.
              Short-circuit protection, overload protection, over-temperature protection.
              Minimum dimming level 3 %.
              max. cable length to the lamp 50 m.
              Size: 120x30x22mm.
              DALI to Phase-Cut 220V DIM 3-25W
              DALI trailing edge phase dimmer 3-25W 86458619-25U.
              Dimming possible of several dimmable phase dim LED retrofit lamps. No halogen lamps!
              Minimum load 3W.
              Maximum load 25W.
              Suitable for resistive, inductive and capacitive loads. By self-detection device after connecting load.
              DALI control signal consumption in standby 6mA.
              Short-circuit protection, overload protection, over-temperature protection.
              Minimum dimming level 3 %.
              max. cable length to the lamp 50 m.
              Size: 32,5x15x58,5mm.

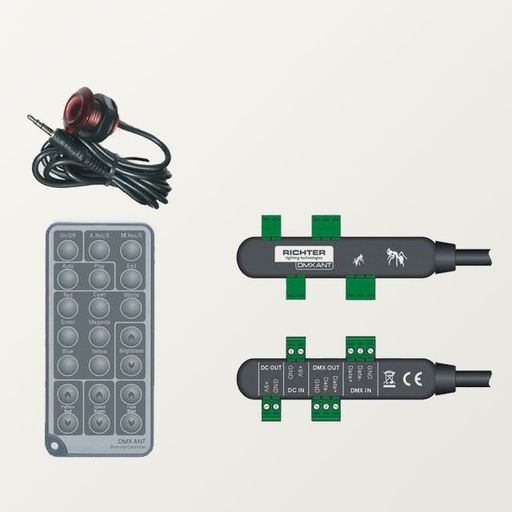

              DMX Control RGB IR Remote
              DMX IR remote controller for connection to DMX drivers and control of RGB LED.
              Only suitable for 1 DMX address 001.
              Device for remote control function of RGB installation with unlimited DMX drivers.

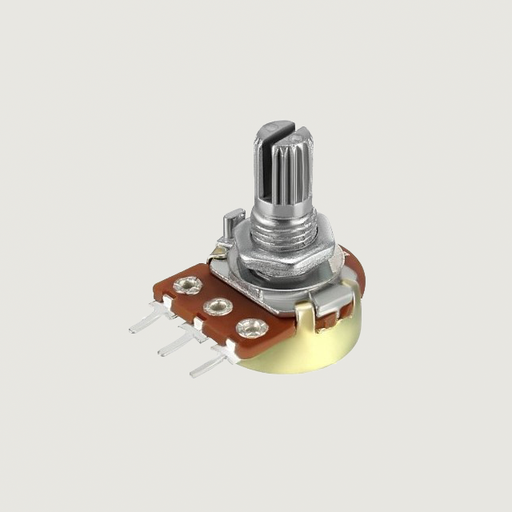

              Linear Potmeter 100k - Dim button
              Rotary potentiometer with a variable resistance of a maximum of 100K ohm.
              Suitable for setting or dimming voltage-free 0-10V control (eg. on power supply MEAN-ELG24V75WB).
              This potentiometer is supplied including mounting nut and washer for mounting. The shaft is approximately 1.5 cm long, perfect for the standard buttons.
              Osram Light Control System Push
              The DALI PCU is a compact control unit for standard switches with integrated DALI supply for manual dimming and switching of DALI lamps.

              With this control unit small and medium-sized projects can be realized simply and cost-effectively and can be used in meeting rooms, restaurants, shop lighting and in residential buildings.
              The DALI PCU is simply installed in the flush-mounted socket.
              No mains connection is required to set up another passive control point. Both the switch-on value and the minimum dimming setting can be stored individually. An active DALI PCU can control up to 25 luminaires.

              Up to four DALI PCUs can be connected in parallel and synchronized automatically. This allows projects of up to 100 luminaires to be realized.
