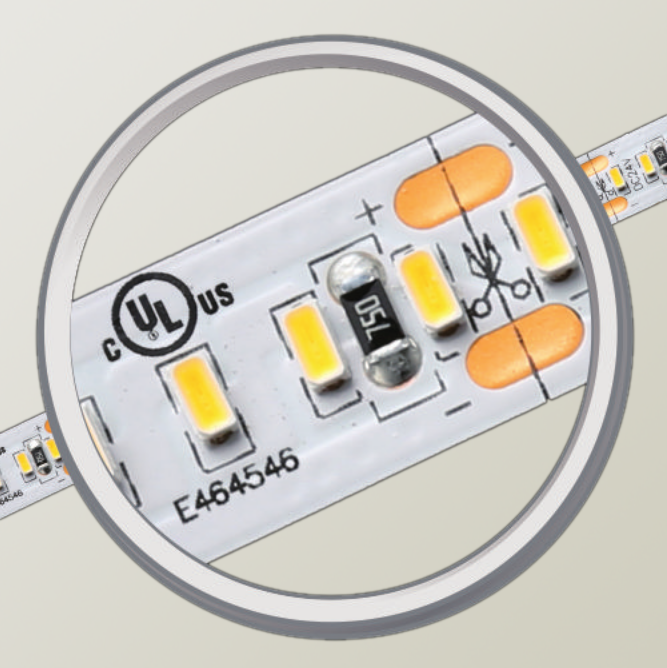

HIGH DENSITY 19.2W/m MONO COLOR
Internal Reference:High density (240 LED/m ) high CRI LED strip for special applications with standard lumen requirements.
Suitable for low depth profiles with minimum point spot effect.
24V DC
CRI90+
IP43 for indoor use only.
Can be cut and re-soldered every 2.5cm (6 LEDs).
Supplied in 5m reel package, can be extended up to maximum 10m
Share this product:
| Input Voltage | 24V DC |
| Output lumen max | 2200lm/m |
| Output Power max | 19.2W/m |
| LED density | 240/m |
| Width | 10mm |
| Cut lenght | 2.5cm |
| CRI | 90+ |
| Optic angle | 120° |
| LED chip type | Osram 2216 |
| IP | 43 |
| Working temperature | -35/60° |
| Warranty | 2 years |
|
Electrical Properties
|
|
|---|---|
| Input Voltage | 24V DC |
|
Definitive Properties
|
|
| Color Temperature | 2700K or 3000K or 4000K |
| Channels | Single |
| IP | 43 |
