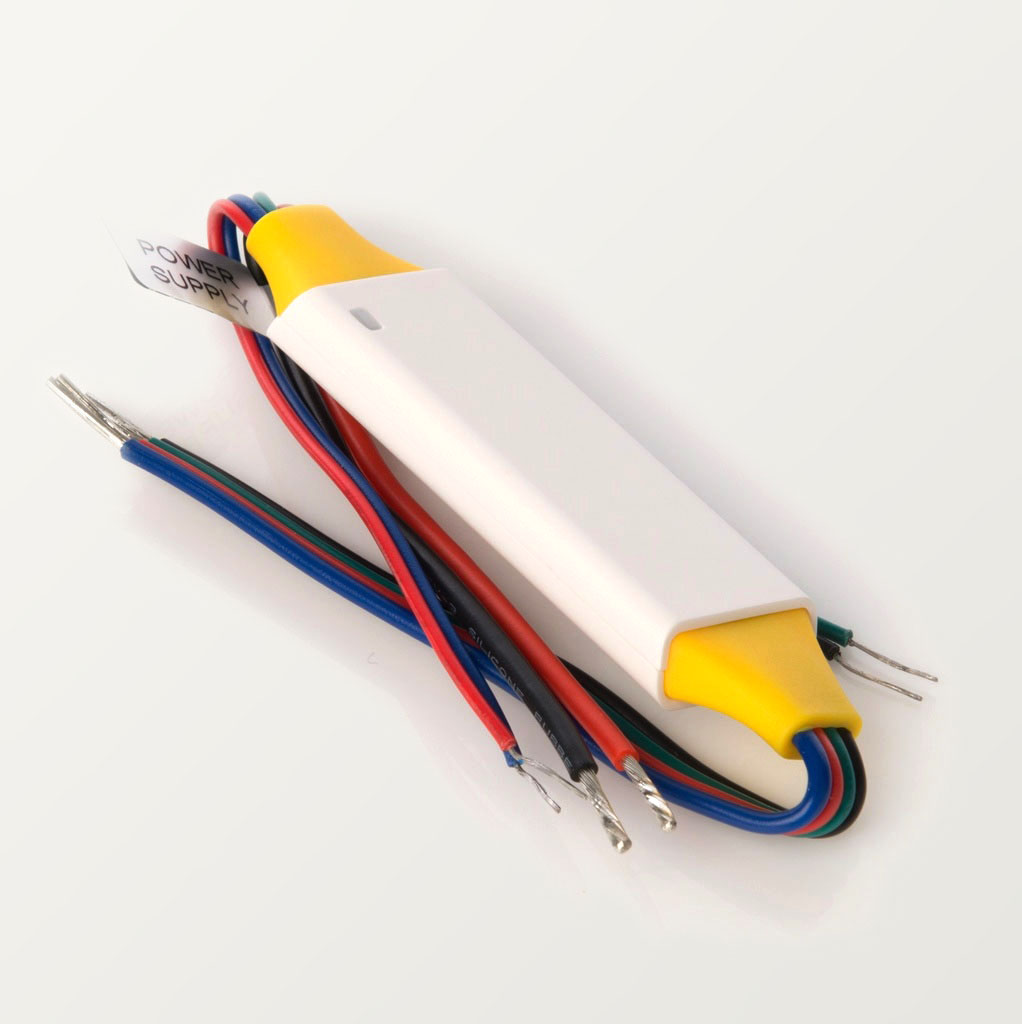

RGB+W RF Amplifier
RGBW amplifier for extended installations. Compatible with ILED-RGBCONT115.
RGBW LED amplifier is designed to drive constant voltage LED products in voltage range of DC5-24V.
It regenerates PWM driving signal and can expand the LED driving range at synchronous mode.
Compact design.
Share this product:
| Input Voltage | 5 - 12 - 24V |
| Output Current max | 4A + 3 x 2.5A |
| Communication | RF |
| Dimming Technique | PWM |
| DImensions | 87x21x8.5mm |
| Cable lenght | 120mm |
| Weight | 22g |
| Working temperature | -30/60°C |
| IP | 20 |
|
Electrical Properties
|
|
|---|---|
| Input Voltage | 5V DC , 12V DC , 24V DC |
| Output Voltage | 5V DC , 12V DC , 24V DC |
| Output Type | Constant Voltage |
|
Definitive Properties
|
|
| Channels | RGBW |
| Communication | RF |
