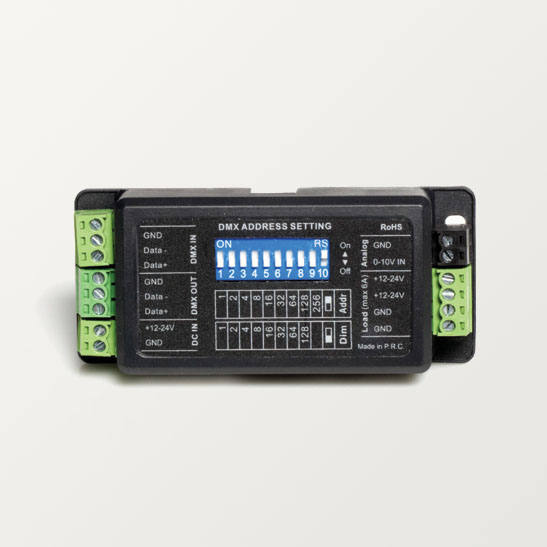

Single Color Multi Protocol Dim (DMX/0-10V/1-10V)


Single channel 6A output LED dimmer.
Only for single color LED strips 12V or 24V.
Drivable by DMX or 0/1-10V and Manual mode.
Start-DMX address setting by Dip-switch.

IP20
Dimensions: 90 x 40 x 20 mm.

https://www.spectro.store/web/image/product.template/298/image_1920?unique=ef84354
  • Input Voltage
  • Input Voltage
  • Output Voltage
  • Output Voltage
  • Output Type
  • Output Type
  • Protocol
  • Communication
  • Dimmable
  • Dimmable

This combination does not exist.

Share this product:
Input Voltage 12V - 24V DC
Output Voltage 12V - 24V DC
Output type Constant voltage
Protocol DMX-512
Communication Wired
Dimmable 1-10V

Manual

X-Dimmer-1-III_Spec_R1.pdf

Electrical Properties
Input Voltage 12V DC , 24V DC
Output Voltage 12V DC , 24V DC
Output Type Constant Voltage , Constant Voltage
Definitive Properties
Protocol DMX-512
Communication Wired
Dimmable 1-10V , DMX-512
