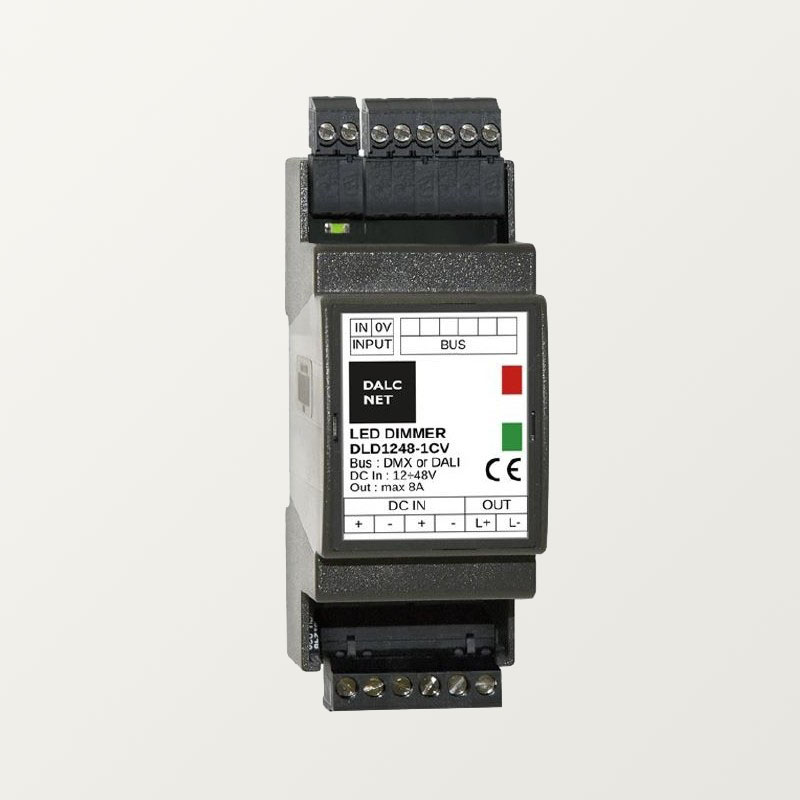

1CH 8A DALI/PUSH/0-10V DIM DIN

Internal Reference: ILED-DLDDIM1CV ILED-DLDDIM1CV

1 channel dimmer.
Extended input voltage 12/24/48 Vdc with maximum output current 8A, controls power up to 312W (at 48V).
LOCAL Command: N.O. push button (with or without memory), 0-10V, 1-10V, Potentiometer, DALI.
Typical efficiency > 95%.
Adjusting the brightness up to completed off (Dim to dark).
Level minimum of brightness: 0.1% (1% in push).
Adjusting output curve: Linear / Quadratic / Exponential.
Soft start and soft stop.

https://www.spectro.store/web/image/product.template/46/image_1920?unique=889f1af

Login | Register to see price

Not Available For Sale

  • Input Voltage
  • Input Voltage
  • Input Voltage
  • Input Voltage
  • Output Type
  • Protocol
  • Channels
  • Channels
  • Communication
  • Fitting
  • Dimmable
  • Dimmable
  • Dimmable

This combination does not exist.

Contact Us
Dalcnet
Dalcnet
Share this product:

Internal Reference: ILED-DLDDIM1CV

Input Voltage 12V - 24V - 48V DC
Output Current max 8A
Protocol DMX512 / DALI / MODBUS / 0-10V DIM / PUSH
Dimming Technique PWM
DImensions 92x36x62mm
Working temperature -40/60°C
Weight 88g

Tech Specs

DLD1248-1CV-DALI_DS_002.pdf

Electrical Properties
Input Voltage 12V DC , 24V DC , 36V DC , 48V DC
Output Type Constant Voltage
Definitive Properties
Protocol DALI
Channels Single , Single
Communication Wired
Fitting DIN
Dimmable DALI , PUSH , 1-10V
